Automotive parts and accessories built to deliver dependable drive for small electric projects, the PetrolScooter Electric Motor is a 24 V, 300 W brushed unit with an included sprocket. Makers and parents gain confidence from a welded mount and standard chain compatibility for quick assembly. Is this the right motor for a child’s go-kart or lightweight scooter conversion?
⚡ At a Glance
- • Power Output: 24 V, 300 W brushed motor with a no-load speed of 2750 RPM
- • Best for: DIY electric scooters, small go-karts and home-built kids' projects
- • Not ideal for: Continuous heavy-duty commercial use or high-performance e-bike applications

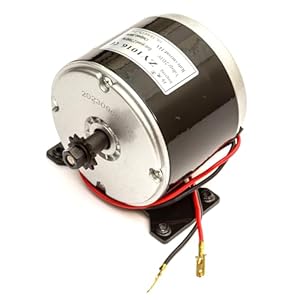

Compact brushed motor configured for chain-drive applications with an 11-tooth sprocket. Welded mount bracket and a roughly 95 mm fixing-hole spacing simplify installation.
Secure, straightforward mounting – With a welded mount bracket
Welded mount bracket gives fixed attachment points and the greatest distance between fixing holes is listed as 95 mm (centre to centre). The bracket suits common DIY frames and reduces the need for custom adapters.
Faster fitting and more stable alignment during use, which helps keep the drivetrain quiet and reliable. Ideal for builders who want a plug-and-play fitment on small chassis.
Usable drive performance – Thanks to a 24 V, 300 W brushed motor rated at 2750 RPM
Rated no-load speed is 2750 RPM with the motor specified at 24 V and 300 W. Rated current appears in the listings as 14 A in one place and 16 A in another, indicating typical operating current around the mid-teens of amps.
Sufficient torque and smooth spin for lightweight scooters and children’s go-karts, delivering the steady performance mentioned by users. Works well for short runs and recreational use rather than prolonged heavy loads.
Chain-drive ready – With an 11-tooth 6 mm sprocket included
Sprocket details: 11 teeth, 6 mm chain size (25H), 3 mm thickness and approx 7 mm tip-to-tip diameter; the shaft length that carries the sprocket is 21 mm with an 8 mm 3/4 moon drive shaft.
Direct compatibility with standard 25H chains keeps drivetrain assembly simple and quick, avoiding extra machining. Suitable for straightforward conversion projects and children’s kart builds.
✨ The 4 Key Reasons for PetrolScooter Electric Motor
- Welded Mount Bracket – Faster, more secure installation across different frame types
- Sprocket Included – Ready-to-run chain drive using standard 6mm (25H) chain
- Reversible Operation – Can be wired for forward or reverse drive direction
- 500mm Wiring Length – Long lead simplifies mounting and neat cable routing
📋 Technical Details at a Glance
- Category: Automotive Parts and Accessories
- Voltage: 24 V
- Wattage: 300 W
- Rated Speed: 2750 RPM (no-load)
- Rated Current: 14 A / 16 A (values listed in descriptions)
❓ Frequently Asked Questions
Q: Is a sprocket included with the motor?
A: Yes. An 11-tooth sprocket suitable for a 6 mm (25H) chain is included according to the description.
Q: What chain size does the motor use?
A: The motor uses a 6 mm chain, specified as 25H, with a sprocket thickness of 3 mm.
Q: Can the motor run in reverse?
A: The drive is described as clockwise but the motor can be wired to operate in forward or reverse directions.
🏆 Our Verdict
The PetrolScooter Electric Motor suits DIY builders converting scooters and assembling small go-karts, offering practical power and straightforward drivetrain compatibility. The inclusion of a welded mount bracket and a matched sprocket makes installation faster and reduces fabrication work. Although not aimed at heavy commercial duty, the robust fitment and common-spec parts make it a sensible long-term choice for hobby projects.
