Internal storage cabling for personal computer systems, 10Gtek Mini SAS to SATA Cable connects a Serial Attached SCSI controller to four SATA drives and supports up to 6Gbps per channel. Neat, dependable wiring makes multi-drive NAS and RAID builds less fiddly. Is it the right breakout cable for short, tidy rack and desktop installs?
⚡ At a Glance
- • Data Throughput: Up to 6Gbps per channel over SFF-8087 to SATA connections
- • Best for: Server builders, NAS enthusiasts and RAID setups needing reliable internal links
- • Not ideal for: External connections or reverse breakout configurations where SATA is host

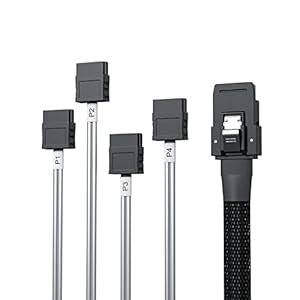

Forward breakout cable with a 36-pin SFF-8087 host connector to four SATA 7-pin female targets. Short 0.5-metre AWG30 twinaxial wiring keeps skew low and maintains 100 Ohm impedance for stable internal links.
Connect four drives from one controller – with SFF-8087 to 4x SATA forward breakout
The 36-pin SFF-8087 male connector maps SAS lanes across four separate SATA 7-pin female sockets, routing each lane directly to an individual drive. Forward breakout wiring is intended for a host/controller on the SAS end with drives on the SATA end.
One SAS port can address four SATA drives inside a chassis, simplifying RAID and direct-attached storage arrangements.
Consistent high-speed transfers – thanks to AWG30 twinaxial 8-pair low-skew wiring
Twinaxial AWG30 8-pair construction reduces crosstalk and differential pair skew while preserving the 100 Ohm characteristic impedance required for SATA signalling. The result supports reliable signalling at the specified 6Gbps per channel rate.
Sustained reads and writes remain stable, helping backups and heavy I/O complete without intermittent dropouts.
Tidy internal routing – with a 0.5-metre cable length
A short 0.5-metre length minimises excess cable inside small chassis and rackmount units, reducing the need to loop or fold cable unnecessarily.
Keeps drive bays neat and accessible, ideal when controller and drives are located close together.
✨ The 4 Key Reasons for 10Gtek Mini SAS to SATA Cable
- Forward Breakout Type – Enables one SAS port to connect four SATA drives
- AWG30 Twinaxial Wiring – Maintains signal integrity for sustained 6Gbps-per-channel RAID performance
- Compact 0.5m Length – Reduces cable clutter inside tight rack and desktop builds
- Recognised by NAS and RAID cards – Compatible with large-capacity SATA drives and RAID arrays
📋 Technical Details at a Glance
- Connector: SFF-8087 (36-pin) male to 4x SATA 7-pin female
- Cable Type: Forward Breakout (Mini SAS to SATA)
- Length: 0.5-Meter (1.65 ft)
- Wire Construction: AWG30 twinaxial 8-pair
- Impedance: 100 Ohms
❓ Frequently Asked Questions
Q: Can this cable connect an SAS controller to SATA drives?
A: Yes. The cable is a forward breakout that links an SFF-8087 host/controller connector to four SATA 7-pin drive connectors, intended for internal direct attachment.
Q: What data speed does the cable support?
A: Up to 6Gbps per channel, with AWG30 twinaxial wiring and 100 Ohm impedance to preserve signal integrity.
Q: Is the cable suitable for NAS and RAID setups?
A: Yes. User reports indicate reliable recognition of large-capacity NAS drives and compatibility with RAID cards, making it suitable for multi-drive arrays.
🏆 Our Verdict
Ideal for server builders, NAS enthusiasts and anyone needing to attach multiple SATA drives to a Serial Attached SCSI controller. The forward breakout design, AWG30 twinaxial wiring and 6Gbps-per-channel capability deliver dependable internal links and tidy routing. It represents a practical, long-term choice for compact multi-drive storage builds that prioritise signal integrity and neat cabling.
