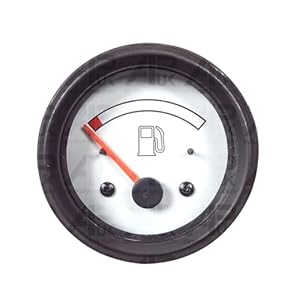

Replacement sender for JCB backhoe loaders, aimed at restoring dependable fuel-level readings, the APUK Fuel Gauge Replacement. Workshop technicians and owners gain clearer diagnostics and quicker repairs. Is the sender compatible with a specific machine and the service manual's resistance chart?
⚡ At a Glance
- • Resistance Range: Empty 10ohms, 1/2 full 91ohms, Full 180ohms
- • Best for: Owners and mechanics of JCB 3C, 3CX, 3D, 3DX, 4C, 4CX and 214–217 backhoe loaders
- • Not ideal for: Machines not listed or systems that require a different resistance profile
Specified resistance points are given for empty, half and full positions. Suitability must be confirmed against the machine service manual.
Accurate level feedback – With defined resistance values
Resistance readings are specified as 10ohms at empty, 91ohms at half full and 180ohms at full, reflecting a resistive sender design. Those figures correspond to discrete positions used by many gauge circuits.
Technicians can compare measured resistance against the listed values to verify sender condition, helping to restore correct fuel indication.
Workshop-friendly fitment – With compatibility for listed JCB backhoes
The product name lists compatibility with a range of JCB 3C, 3CX, 3D, 3DX, 4C, 4CX and 214–217 machines, and the description advises checking the service manual. Fitment depends on matching the sender's electrical characteristics and mounting style.
Cross-checking the machine manual before purchase minimises the risk of a mismatch and reduces time spent on trial fitting.
Simplified fault checking – With explicit resistance markers
Known resistance points allow bench testing with a multimeter to determine whether the sender falls within expected ranges. The three reference values give clear pass/fail criteria for basic diagnostics.
Quick verification before installation avoids unnecessary labour and helps decide if replacement is required or if further electrical diagnosis is needed.
✨ The 4 Key Reasons for APUK Fuel Gauge Replacement
- Straightforward replacement — Minimises workshop time during routine fuel sender swaps
- Service manual reminder — Encourages verification of fitment before installation, reducing errors
- Testable electrical signature — Enables quick bench testing to confirm functionality pre-fit
- Suitable for field repairs — Compact replacement supports roadside or depot maintenance tasks
📋 Technical Details at a Glance
- Category: Fuel gauge sender replacement
- Compatible models: JCB 3C, 3CX, 3D, 3DX, 4C, 4CX, 214, 215, 216, 217
- Resistance, Empty: 10ohms
- Resistance, 1/2 Full: 91ohms
- Resistance, Full: 180ohms
❓ Frequently Asked Questions
Q: Will this fit my JCB model?
A: Check the listed compatibility for JCB 3C, 3CX, 3D, 3DX, 4C, 4CX and 214–217 machines, and confirm exact fitment by consulting the machine's service manual.
Q: What are the resistance values I should expect?
A: Resistance is specified as 10ohms at empty, 91ohms at half full and 180ohms at full.
Q: Can I test the sender before fitting?
A: Compare measured resistance with the listed figures to confirm whether the sender meets the expected electrical signature before installation.
🏆 Our Verdict
Suitable for workshop technicians and owners of the listed JCB backhoe models who need a direct replacement sender. Known resistance points and explicit compatibility notes make it straightforward to test and match against the service manual. A practical spare that should restore reliable fuel indication and reduce downtime when fitted correctly.
