Musical instrument component promising secure latching and straightforward wiring for guitar builds. Musicians and DIY pedal makers gain a tactile control that feels confident under the thumb. Is the sourcing map Guitar Mini Latching Toggle Switch the practical choice for workshop rewiring and on-stage reliability?
⚡ At a Glance
- • Switch Action: Latching two-position ON/ON operation with a positive throw
- • Best for: Guitarists and DIY pedal builders needing dependable manual switching
- • Not ideal for: Applications requiring sealed, waterproof or weatherproof switching

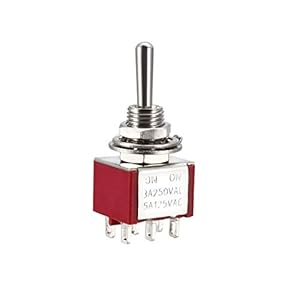

Latching DPDT, two-position toggle with six terminals for flexible wiring. Requires a 15/32" (12mm) mounting hole and includes fastening hardware.
Stable Performance – thanks to latching DPDT mechanism
Latching double-pole double-throw operation holds whichever position is selected until the lever is moved again, using six electrical terminals for separate pole routing. Two stable states reduce contact bounce during switching.
Confident on/off changes suit pickup selection, phase switching or routing between signal paths without accidental movement during play.
Straightforward Mounting – with a 15/32" (12mm) threaded shaft
Threaded shaft matches a 15/32" (12mm) panel hole and ships with two nuts plus a flat and lock washer for secure fastening. Standardised thread and hardware allow firm clamping to pickguards or control panels.
Quick installation into guitar cavities or pedal enclosures, with solid fastening that reduces movement and rattles.
Adequate Electrical Rating – thanks to specified AC voltage and current limits
Rated for AC 250V at 3A and AC 125V at 5A, giving defined current and voltage limits for switching tasks. Six terminals provide clear separation of poles for wiring without cross-contact.
Suitable for common instrument-level switching and many hobby electronics tasks where those ratings are required.
✨ The 4 Key Reasons for sourcing map Guitar Mini Latching Toggle Switch
- Fat bat toggle profile - Easier thumb reach and confident switching during performance
- Solder-ready terminal spacing - Simplifies soldering and reduces the risk of bridges
- Included fastening kit - Immediate installation without sourcing extra nuts or washers
- Positive mechanical feel - Firm throw gives reliable tactile feedback on each change
📋 Technical Details at a Glance
- Category: Musical instrument switch
- Type: Latching toggle switch
- Poles/Throws: DPDT (double-pole, double-throw)
- Positions: 2 Position ON/ON
- Terminals: 6 pins
❓ Frequently Asked Questions
Q: What switching action does the part use?
A: Latching DPDT, two-position ON/ON action with six wired terminals for double-pole routing.
Q: What size mounting hole is required?
A: A 15/32" (12mm) panel hole is required for the threaded shaft to fit correctly.
Q: Are fastening accessories included?
A: Yes, two nuts, a flat washer and a lockwasher are supplied for secure mounting.
🏆 Our Verdict
Ideal for guitarists, luthiers and DIY pedal builders who need dependable manual switching in tight spaces. The compact latching DPDT layout, standard mounting size and supplied hardware make it a practical replacement or upgrade for wiring projects. Durable mechanical feel and defined electrical ratings give long-term value for workshop and performance use.
