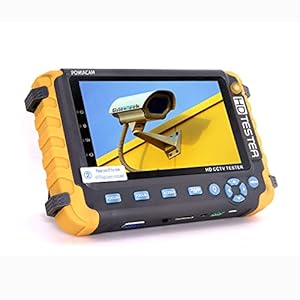

Handheld CCTV tester for on-site installation and maintenance, designed to handle analogue and HD coax camera formats with fast live preview using POMIACAM CCTV Tester. Installers can control PTZ heads, power cameras and run cable checks from a compact 5-inch display. Would a compact tester that combines live view, PTZ control and cable diagnostics be the practical addition to your kit?
⚡ At a Glance
- • Image Quality: 5.0-inch TFT, 800 (RGB) x 480 with wide viewing angles; supports PAL and NTSC standards and up to 8MP AHD/TVI/CVI
- • Best for: Installers and engineers testing and maintaining analogue and HD coax CCTV systems on-site
- • Not ideal for: Users who require testing or configuration of IP/network cameras and advanced VMS features
Compact 5-inch monitor handles standard-definition and HD coax formats for quick visual checks. Integrated PTZ control and cable-testing functions support common installation tasks.
Clear Live Feeds - with multi-format analogue and HD coax support
Support for CVBS, AHD (8MP), TVI (8MP) and CVI (8MP) formats accepts direct camera inputs and displays them on a 5.0-inch 800 x 480 TFT. PAL and NTSC standards are selectable to match regional systems.
Fast visual verification of camera alignment and image quality without needing a recorder. Crisp, wide-angle viewing helps confirm coverage and focus on-site.
Full PTZ Control and Diagnostics - with RS485 Pelco-D/P and image generator
RS485 interface supports Pelco-D and Pelco-P protocols to command pan, tilt and zoom functions, while a multi-format video out image generator supplies standard colour graphics for testing.
Remote camera movement and zoom adjustments speed set-up and troubleshooting, removing the need for an extra controller. Image generation aids configuration where a reference signal is required.
Power and Cable Verification on Site - with DC12V 1A output and UTP test
DC12V 1A output supplies power to cameras during checks and a cable-testing routine evaluates UTP and telephone cable order and connectivity, with the option to save test reports.
Powering cameras from the unit removes the need to carry separate power supplies, while built-in cable checks quickly identify wiring faults and reduce return visits.
✨ The 4 Key Reasons for POMIACAM CCTV Tester
- Multi-format Video Support – Speeds installation by showing CVBS, AHD, TVI, CVI feeds instantly
- PTZ Control via RS485 – Allows remote pan, tilt and zoom during setup to save time
- DC12V 1A Power Output – Powers cameras on-site for immediate testing without extra PSU
- VGA and HDMI Inputs – Accepts PC or recorder feeds up to 1920 x 1440 resolution
📋 Technical Details at a Glance
- Category: BISS
- Display: 5.0-inch TFT, 800 (RGB) x 480, wide viewing angle
- Supported Formats: CVBS, AHD (8MP), TVI (8MP), CVI (8MP)
- Video Standards: PAL / NTSC selectable
- PTZ Protocols: Pelco-D, Pelco-P
❓ Frequently Asked Questions
Q: Does the tester support IP cameras?
A: No, the unit is developed for analogue and HD coax cameras (CVBS, AHD, TVI, CVI) and does not support IP cameras.
Q: Can the tester power cameras on-site?
A: Yes, a DC12V 1A output is available to supply power to cameras during installation and testing.
Q: Can the tester check network or UTP cabling?
A: Yes, UTP and telephone cable order and connectivity tests are supported and test reports can be saved.
🏆 Our Verdict
Suitable for installers and engineers who need a portable, hands-on tool for analogue and HD coax camera setup. The combination of multi-format video support, PTZ control and onboard cable testing makes field checks faster and more reliable. User feedback highlights ease of use and strong value, making the unit a practical long-term addition to a professional toolkit.
