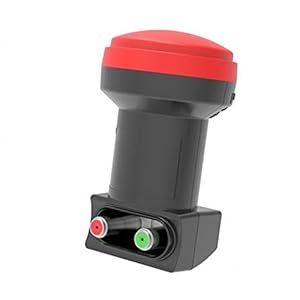

Satellite LNB engineered for highly stable frequency performance and reliable narrow-band reception. Reduced retuning keeps amateur and professional operators calm during long monitoring sessions. Does the Bullseye QO-100 TCXO LNB deliver the steady, repeatable tuning serious satellite users need?
⚡ At a Glance
- • Frequency Stability: Within 10 kHz in normal outdoor environment
- • Best for: Narrow-band satellite reception, amateur radio operators and small-dish stations
- • Not ideal for: Installations needing multiple independent LNB outputs or integrated multiswitches
TCXO control keeps frequency drift low and repeatable, aiding long monitoring sessions. Factory calibration to within 1 kHz plus a 25 MHz reference output supports precise frequency locking.
Reliable frequency lock - with TCXO and factory calibration
Temperature-compensated crystal oscillator reduces thermal drift, maintaining stability within 10 kHz in typical outdoor conditions. Factory calibration refines the centre frequency to within 1 kHz using GPS-locked spectrum analysers.
Long listening sessions remain centred on narrow-band signals without frequent retuning. Suitable for users who need steady frequency lock for telemetry or narrowband transponders.
Precise referencing - with 25 MHz output on secondary F-connector
A dedicated secondary F-connector provides a 25 MHz reference output that can be used to discipline external local oscillators. The reference allows connected equipment to achieve tighter frequency alignment.
External receivers or reference-capable hardware can lock to an accurate 25 MHz source for repeatable tuning. Helpful when sub-kilohertz stability is required over extended periods.
Good small-dish performance - with wide input and output coverage
Input coverage spans 10489 - 12750 MHz, with L-band outputs of 739 - 1950 MHz (low) and 1100 - 2150 MHz (high). Single universal output design converts Ku-band signals to receiver-friendly L-band ranges.
Delivers reliable reception even on modest dish sizes, according to user feedback. Straightforward single-output cabling keeps installations simple and compact.
✨ The 4 Key Reasons for Bullseye QO-100 TCXO LNB
Factory calibration within 1 kHz - Ensures near-instant accurate tuning across satellite transponders every time
25 MHz reference output - Enables external locking for sub-kilohertz frequency stability over time
Wide input and output bands - Covers common Ku-band inputs and multiple L-band outputs
Single universal output - Simplifies cabling and direct connection to receivers for many setups
📋 Technical Details at a Glance
- Category: Electronics
- Brand: Bullseye
- Type: QO-100 TCXO LNB
- Frequency stability: Within 10 kHz in normal outdoor environment
- Factory calibration: Calibrated within 1 kHz using GPS-locked analysers
❓ Frequently Asked Questions
Q: Does it support an external 25 MHz reference?
A: Yes, a 25 MHz output reference is available on the secondary F-connector for external locking and precise frequency discipline.
Q: How stable is the frequency in outdoor conditions?
A: Frequency stability is within 10 kHz in normal outdoor environments, with factory calibration refining the centre frequency to within 1 kHz.
Q: What frequency ranges does the converter cover?
A: Input covers 10489 - 12750 MHz and the L-band outputs are 739 - 1950 MHz (low) and 1100 - 2150 MHz (high).
🏆 Our Verdict
Ideal for amateur radio operators and satellite enthusiasts who require sustained, accurate tuning for narrow-band signals. The combination of TCXO stability, factory calibration and a 25 MHz reference output makes it a precise choice for disciplined frequency work. Durable, repeatable performance should deliver long-term value for demanding reception setups.
