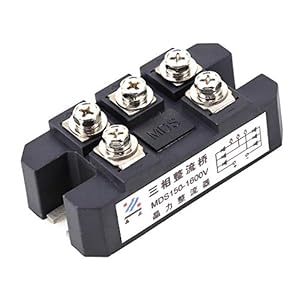

Three-phase rectifier bridge designed to convert AC into steady DC for industrial and renewable energy applications. Durable construction and compact size make replacement work quicker and more dependable. Is the DEWIN Three-phase Rectifier Bridge the right fit for your inverter, battery charger, or wind turbine system?
⚡ At a Glance
- • Power Handling: High-current three-phase rectification, rated 150A and 1600V
- • Best for: Replacing rectifier bridges in wind turbines, PWM inverters and battery chargers
- • Not ideal for: Applications that require built-in voltage regulation or active monitoring
Pure copper components and welded construction deliver stable electrical performance. Compact size and a metal base allow straightforward heat-sink mounting and quick replacement.
Reliable long-term operation, thanks to welded construction and power-cycling resilience
Welded assembly improves mechanical integrity of diode connections and helps maintain stable contact under repeated heating and cooling cycles. Manufacturer notes good power cycling and temperature characteristics, which reduces the risk of thermal fatigue.
Consistent rectification under repeated load means fewer premature failures and less maintenance. Expect dependable performance in demanding environments where cycles and temperature swings occur.
Stable conduction and low loss, thanks to pure copper components
Diode bridge components use pure copper material, which supports reliable electrical contact and effective conduction. Copper components contribute to stable performance during prolonged current flow.
Cleaner, steadier DC output for motors, chargers and inverters, with reduced risk of hotspots. Useful where continuous high-current handling matters.
Quick, practical replacement, thanks to compact size and metal base
Small, portable form factor simplifies access inside enclosures, while a metal base allows direct attachment to a heat sink. User feedback highlights that the metal base attaches easily to heat sinks for secure mounting.
Faster servicing and straightforward retrofits in existing systems reduce downtime. Handy for engineers and technicians who need a drop-in replacement.
✨ The 4 Key Reasons for DEWIN Three-phase Rectifier Bridge
- Pure copper components - Stable electrical performance during prolonged high-current operation and heat exposure
- Welded construction - Withstands repeated power cycling and thermal stress without failure
- Compact, portable size - Easy to install in confined spaces and tight panels
- Metal base for heat-sink attachment - Simplifies mounting and improves heat dissipation under load
📋 Technical Details at a Glance
- Category: Three-phase rectifier bridge
- Model: MDS150A
- Current rating: 150A
- Voltage rating: 1600V
- Material: Pure copper components
❓ Frequently Asked Questions
Q: Can this be used for battery charging and inverter inputs?
A: Yes, product information lists PWM inverter current input and battery charging among intended applications, so the rectifier bridge is suitable for those uses.
Q: What materials and construction support durability?
A: Pure copper components and welded construction are specified, and user feedback notes reliable performance and a metal base that attaches to a heat sink.
Q: Is installation straightforward for replacements?
A: Yes, descriptions state a small, portable size that is convenient for installation and maintenance, and reviews mention the metal base easily attaches to a heat sink.
🏆 Our Verdict
Suitable for technicians and installers who need a robust, high-current three-phase rectifier for inverters, chargers and wind turbines. The combination of pure copper components, welded construction and a heat-sink friendly base makes for reliable electrical performance and straightforward replacement. While not marketed as a premium electronics module, the durable build and practical design deliver solid long-term value for maintenance and repair work.
