Measurement tools for workshops designed to deliver repeatable, fine readings for inspection and machining tasks. Confidence for technicians and hobbyists who need reliable set-up and stable mounting. Does Neoteck Dial Gauge and Magnetic Tripod meet the accuracy and stability required for professional use?
⚡ At a Glance
- • Measurement Accuracy: Resolution of 0.01 mm with an error margin of ±0.05 mm for fine linear measurement
- • Best for: Machinists, quality inspectors and workshop technicians needing repeatable small-distance readings
- • Not ideal for: Surfaces that are non-metallic or metal thinner than 30 mm where full magnetic hold is unavailable

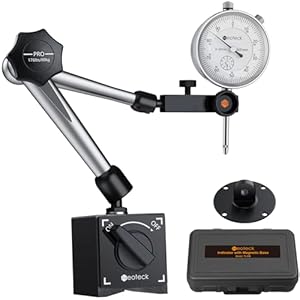

Mechanical dial gauge reads 0-20 mm with 0.01 mm resolution. Magnetic tripod supplies up to 176 lb pull on suitably thick metal surfaces while a central clamp and swivel allow flexible positioning.
Consistent, repeatable readings – With 0.01 mm resolution mechanical dial gauge
Mechanical dial gauge measures from 0 to 20 mm with a resolution of 0.01 mm and an indicated error of ±0.05 mm. High sensitivity and stable mechanics minimise needle bounce during measurement.
Accurate readings reduce guesswork during machining set-up and inspection, helping to avoid costly rework. Clear graduation and stable motion make measuring small linear changes straightforward.
Secure mounting on metal workpieces – Thanks to two-surface magnetic tripod with on/off control
Magnetic base contains two full magnetic surfaces with an on/off switch and can supply up to 176 lbs/80 kg pull when placed on a metal surface at least 30 mm thick. Controlled magnet engagement reduces slippage during adjustments.
Stable holding prevents the gauge from shifting during measurement or vibration, enabling longer inspections and more reliable comparative checks. Quick magnetic on/off makes repositioning faster on suitable metal fixtures.
Flexible positioning in tight spaces – With central clamp and precise swivel
Central clamping dial holder accepts a 3/8 inch (9.525 mm) stem and features a durable swivel joint that adjusts in multiple directions and locks firmly into place.
Easier alignment of the gauge face in awkward orientations allows measurement in confined or recessed areas. Fast reorientation reduces set-up time between jobs.
✨ The 4 Key Reasons for Neoteck Dial Gauge and Magnetic Tripod
- 0.01 mm resolution – Guarantees repeatable, fine measurements for tight machining tolerances
- 176 lb magnetic base – Holds securely on thick metal surfaces during long inspections
- Central clamp with 3/8" fitting – Fits most dial indicators for quick mounting and release
- Adjustable swivel head – Allows precise positioning in awkward or confined areas
📋 Technical Details at a Glance
- Type: Mechanical dial gauge and magnetic tripod set
- Measuring range: 0–20 mm
- Resolution: 0.01 mm
- Accuracy / Error: ±0.05 mm
- Magnetic base pull force: Up to 176 lbs / 80 kg (requires metal surface 30 mm thick or more)
❓ Frequently Asked Questions
Q: What is the measuring range and precision of the dial gauge?
A: The mechanical dial gauge measures from 0 to 20 mm with a resolution of 0.01 mm and an error of ±0.05 mm.
Q: How strong is the magnetic base and what surface is required?
A: Two full magnetic surfaces with on/off control can supply up to 176 lbs / 80 kg of pull, which requires a metal working area with a thickness of 30 mm or more to achieve that maximum force.
Q: Will the clamp accept standard dial indicators?
A: Clamp diameter is 3/8" (9.525 mm) and compatibility is stated for most dials and digital indicators, allowing straightforward mounting of common indicator stems.
🏆 Our Verdict
Suitable for machinists, quality inspectors and serious workshop users who require repeatable fine measurements. Accurate 0.01 mm resolution combined with a powerful magnetic base and flexible clamp makes the set useful for inspection and set-up tasks. While designed for metal-working contexts, long-term value comes from reliable readings and broad compatibility with standard indicators.
