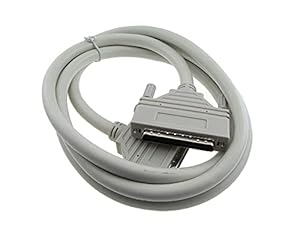

SCSI connection cable for servo drive I/O, the MDFLY CN68 68-Pin MDR SCSI Cable promises direct, unambiguous signal routing. That reassurance matters when machine downtime disrupts production. Is the specification and form factor right for your control cabinet and wiring setup?
⚡ At a Glance
- • Connection Type: 68-pin MDR SCSI I/O male-to-male connection intended for servo drive links
- • Best for: Industrial automation installers wiring servo drives and motion controllers
- • Not ideal for: General consumer computer backups or non-SCSI peripheral connections
A 68-pin MDR SCSI male-to-male cable intended for servo drive I/O. One-metre length suits short runs inside control enclosures.
Reliable signal transfer – Thanks to 68-pin MDR SCSI connector
The MDR SCSI interface exposes all 68 I/O pins in a compact connector, allowing straightforward pin-to-pin wiring for control signals. Male-to-male termination pairs directly with matching female MDR ports without additional adapters.
Stable electrical connections reduce intermittent faults during motion control operations. Clear pin mapping simplifies commissioning and troubleshooting.
Simpler installation – With male-to-male terminations
Male-to-male wiring joins two compatible MDR ports directly, avoiding in-line gender adapters that add connection points. Direct terminations shorten the signal path between controller and servo drive.
Fewer connectors means fewer potential failure points and quicker fitment in confined spaces. Installation and maintenance routines remain straightforward.
Neat routing in tight cabinets – Thanks to the MDR form factor
MDR connectors are lower profile than full-size SCSI heads, reducing bulk around connection panels. The compact footprint helps route cables close to drives and controllers.
Tidier cable management inside control cabinets helps airflow and access. Short one-metre runs avoid excess slack that can snag or tangle.
✨ The 4 Key Reasons for MDFLY CN68 68-Pin MDR SCSI Cable
- MDR 68-pin connector – Enables reliable pin-to-pin connections in servo control systems
- Male-to-male terminations – Reduces need for adapters, simplifying installation and maintenance
- One-metre length – Ideal for compact cabinets, avoids excess slack and tangles
- SCSI I/O focus – Matches standard servo drive interfaces for straightforward compatibility
📋 Technical Details at a Glance
- Category: BISS
- Brand: MDFLY
- Model: CN68
- Connector: 68-Pin MDR SCSI
- Configuration: Male to Male
❓ Frequently Asked Questions
Q: What type of connector does it use?
A: The cable uses a 68-pin MDR SCSI male-to-male connector intended for I/O signal links.
Q: Is it suitable for servo drives?
A: Designed for servo drive I/O connections, matching typical MDR SCSI ports used in motion control systems.
Q: What length is the cable?
A: The listed length is 1 metre, appropriate for short runs inside control enclosures.
🏆 Our Verdict
Suitable for engineers and installers who need a straightforward SCSI I/O link between motion controllers and servo drives. Direct 68-pin MDR male-to-male termination provides clear pin mapping and tidy routing for compact cabinets. While cost varies by supplier, the focused specification and simple install behaviour support reliable long-term operation in industrial wiring schemes.
