A cabinet jig designed to make concealed hinge installation accurate and repeatable, the Hakkin Hinge Jig helps mark and guide 35mm Forstner drilling for neat hinge cups. Saves time and reduces mistakes when fitting cupboard doors, so DIYers and tradespeople can finish jobs faster and with neater results. Is the set rugged and precise enough for regular workshop use?
⚡ At a Glance
- • Positioning Accuracy: Red positioning plate and V-locator mark precise centre points for 35mm hinge cups
- • Best for: DIY enthusiasts and cabinet fitters who want consistent hinge placement
- • Not ideal for: Doors or hinges that require non-standard hole sizes or router-only installation methods

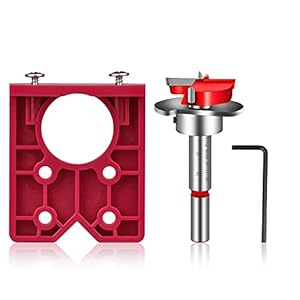

Guide locates and marks 35mm hinge cup centres using a red positioning plate and V-locator. Includes a 35mm Forstner bit with a detachable depth-limiting baffle and an ABS plastic guide.
Accurate hinge placement - thanks to the red positioning plate and V-locator
Red positioning plate is used only to draw the installation position and locate the centre hole, while a V-locator works off a centre reference line to align the mark. The cutter fits into the plastic template hole to keep the centre consistent.
Accurate centre marks reduce the risk of shifted holes and minimise edge damage, so hinges sit flush and doors align more predictably.
Clean, repeatable drilling - with a 35mm Forstner bit and depth-limiting baffle
The 35mm Forstner drill bit has a centre-positioned tip for sharper cutting and a detachable depth-limiting baffle with a clear scale for consistent bore depth. Guidance recommends the drill chuck clamps the hole saw to prevent drift.
Consistent hole depth produces neat hinge cups and avoids weakening the door face, making hinge mounting quicker and less error-prone.
Built for longevity and portability - with carbide and ABS construction
The drill bit is manufactured from premium carbide steel, chosen for high hardness, resistance to deformation and corrosion. The hinge drill guide is made from ABS plastic, which keeps the jig lightweight and durable.
Durable materials mean the bit holds an edge and the guide stays straight, ideal for repeated home jobs or occasional trade use.
✨ The 4 Key Reasons for Hakkin Hinge Jig
- Red Position Plate – Marks 35mm hinge centres quickly and accurately on doors
- V-locator – Keeps centre points aligned to a reference line every time
- 35mm Forstner Bit – Cuts clean hinge cups with detachable depth stop for consistency
- Carbide Steel Construction – Resists wear and stays sharp across many cuts
📋 Technical Details at a Glance
- Category: Hinge jig and Forstner bit set
- Drill bit diameter: 35mm Forstner bit
- Drill bit material: Carbide steel
- Template material: ABS plastic
- Positioning plate diameter: 35mm centre hole
❓ Frequently Asked Questions
Q: Can I drill directly through the red positioning plate?
A: No, the red positioning plate is only used to draw the installation position and locate the centre hole, it is not intended for drilling.
Q: What hinge hole size does the jig position?
A: The jig is designed for 35mm hinge cup holes and positions centres accordingly.
Q: Is the drill bit durable enough for repeated use?
A: Yes, the Forstner bit is made of premium carbide steel, which offers high hardness and resistance to deformation and corrosion, supporting longer service life.
🏆 Our Verdict
The Hakkin Hinge Jig suits DIYers and cabinet fitters who need accurate, repeatable 35mm hinge cup placement. The combination of a red positioning plate, V-locator and a carbide 35mm Forstner bit with depth stop delivers neat, consistent hinge holes. Offers practical long-term value thanks to durable materials and straightforward operation for home and workshop use.
