Home improvement tool that speeds up hinge cup drilling while keeping results consistent. Confident and accurate fittings help reduce rework and frustration for DIYers and tradespeople. Is the GQGP Concealed Hinge Jig the right addition to your workshop toolkit?
⚡ At a Glance
- • Drilling Accuracy: Flat aluminium base and built-in double bearings reduce lateral wobble for steady, repeatable drilling
- • Best for: Carpenters, kitchen fitters and DIY enthusiasts fitting 35mm concealed hinges to cabinet doors
- • Not ideal for: Boards thinner than 12mm or thicker than 25mm where the clamp and depth settings cannot secure material

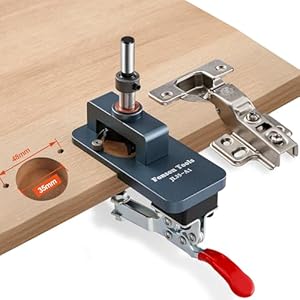

All-metal aluminium alloy jig with a flat base and double bearings for stable drilling. Includes a 35mm hole saw, 2mm pilot bit and accessories for use with standard electric drills.
Accurate Hinge Cups – Thanks to built-in double bearings
Double bearings on the drilling locator reduce lateral movement during rotation, so the cutter remains centred while cutting the 35mm cup. A flat aluminium base keeps the jig flush against the door face for consistent geometry.
Precision drilling delivers repeatable hinge cup placement, reducing alignment fiddles during fitting. Accurate holes mean hinges sit flush and doors close more reliably.
Faster, Repeatable Set-up – With quick clamp and depth limit ring
A quick-clamp locking plate secures the jig to the door, while an adjustable limit ring sets the drill depth, typically at 12–13mm for hinge cups. Marking, clamping and drilling become a simple, repeatable sequence.
Faster installation across multiple doors, with consistent hole depth that avoids over-drilling. Time spent on alignment is reduced, making multi-door jobs more efficient.
Robust Workshop Use – With all-metal aluminium alloy construction
An aluminium alloy body offers greater rigidity than plastic alternatives, resisting wear and deformation under repeated drilling. Supplied wrenches and hex tool allow on-site adjustments and maintenance.
Durable construction withstands regular use, so the jig remains accurate over time. Included accessories mean immediate use and straightforward maintenance in the workshop.
✨ The 4 Key Reasons for GQGP Concealed Hinge Jig
- All-metal aluminium alloy – Lasts longer under heavy workshop use, resists plastic warping
- Built-in double bearings – Reduces lateral wobble for more accurate hinge cup drilling
- Quick clamp and depth ring – Allows rapid, repeatable 35mm cup positioning across multiple doors
- Supplied cutting and pilot bits – Ready to use with most standard electric drills
📋 Technical Details at a Glance
- Tool: Concealed hinge jig for cabinet doors
- Material: Aluminium alloy body with flat base
- Suitable wood thickness: 12–25mm
- Hole size: 35mm hinge cup
- Hole to edge distance: 5mm
❓ Frequently Asked Questions
Q: What door thicknesses are supported?
A: Suitable for boards between 12mm and 25mm thick, as stated in the product description. Boards outside that range may not clamp securely.
Q: Does the jig include drill bits and tools to start work immediately?
A: Yes, the packing list includes a 35mm hole saw, a 2mm pilot drill bit, a limit ring, two small wrenches and a hexagonal tool for setup and use.
Q: Can it be used with any electric drill?
A: The jig is designed to be used with standard electric drills, allowing the supplied 35mm cutter and pilot bit to be driven by most drill models.
🏆 Our Verdict
Suitable for tradespeople and confident DIYers who install concealed hinges and demand consistent results. A combination of flat aluminium construction, double bearings and included cutters makes accurate 35mm hinge cup drilling straightforward. While cost varies, the durable build and useful accessories deliver long-term value for repeated hinge installations.
