Home improvement component for fuel and oil routing, designed to withstand heat and chemical exposure. Confidence for mechanics and workshop users who need a long-lasting, clearly labelled connection. Does the AutoSiliconeHoses.com Fuel & Oil Elbow Hose suit tight engine bays and industrial fuel lines?
⚡ At a Glance
- • Material Resistance: Fluorolined silicone inner lining resists fuels, oils, chemicals and UV, supported by 3-ply polyester reinforcement
- • Best for: Automotive and industrial fuel and oil transfer applications needing high temperature and chemical resistance
- • Not ideal for: Potable water systems or low-pressure garden applications where chemical resistance is unnecessary

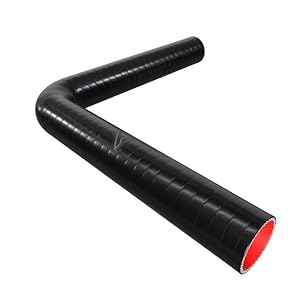

45mm internal diameter elbow with 300mm legs, totalling 600mm overall. Fluorolined silicone construction, 3-ply polyester reinforcement, 4.5mm wall thickness, outside diameter 56mm and rated to +180C.
Reliable fuel transfer - with fluorolined silicone lining
Fluoroline inner lining creates a chemical-resistant barrier between carried fluids and the silicone body, reducing permeation. Three layers of polyester reinforcement maintain structural integrity under pressure and flex.
Chemical exposure from petrol and oil is less likely to degrade the inner surface, helping to prevent leaks over extended service periods.
High temperature endurance - thanks to +180C operating rating
Silicone compound rated for a maximum operating temperature of +180C, combined with a 4.5mm wall thickness that increases thermal mass and resistance to softening. Thermal tolerance supports use near hot engine components.
Maintains shape and sealing performance in hot environments, reducing the need for frequent replacements in heat-exposed installations.
Easier routing and identification - with long 300mm legs and clear labelling
Each leg measures 300mm, giving a total reach of 600mm while maintaining a 90 degree elbow profile. Manufacturing tolerance of +/-1mm ensures consistent fit, and vivid red marine-grade marking aids visual identification.
Longer legs allow neater routing through confined spaces, and clear markings speed up workshop servicing and part matching.
✨ The 4 Key Reasons for AutoSiliconeHoses.com Fuel & Oil Elbow Hose
- 3-ply polyester reinforcement - Handles higher pressure and resists kinking during installation
- 4.5mm wall thickness - Adds strength and thermal buffering for hot engine environments
- Vivid red marine-grade marking - Quick identification under the bonnet or in workshop settings
- Manufacturing tolerance +/-1mm - Ensures reliable fit on mating fittings and hose clamps
📋 Technical Details at a Glance
- Category: Home Improvement, Automotive hose component
- Internal Diameter (ID): 45mm (1 3/4")
- Outside Diameter (OD): 56mm
- Hose Tolerance: +/- 1mm
- Wall Thickness: 4.5mm
❓ Frequently Asked Questions
Q: Is this hose suitable for fuel and oil applications?
A: Yes, fluorolined silicone hoses are designed specifically for fuel and oil applications, offering superior resistance to chemicals and UV as stated in the product description.
Q: What are the dimensions and fit details?
A: Internal diameter is 45mm, outside diameter is 56mm with a tolerance of +/-1mm, each leg measures 300mm giving 600mm total length for the 90 degree elbow.
Q: What temperature range can the hose handle?
A: Maximum operating temperature is +180C, supported by a 4.5mm wall thickness and 3-ply reinforcement for high-temperature use.
🏆 Our Verdict
Ideal for mechanics, performance workshops and industrial installers who need a heat- and chemical-resistant elbow for fuel and oil lines. Fluorolined silicone inner lining combined with 3-ply polyester reinforcement and clear marine-grade labelling makes it dependable and easy to service. Durable construction and precise tolerances suggest strong long-term value for repeated use in demanding environments.
