Automotive workshop measuring tool that helps verify chassis and alignment reference points with adjustable reach. Gain confidence when checking steering, subframe and under-bonnet positions during repairs and restorations. Is PowerTec Bodywork Trammel Gauge the right manual gauge for your garage?
⚡ At a Glance
- • Measuring Range: Adjustable length for wide-span chassis measurements
- • Best for: Garage technicians and DIY mechanics checking chassis reference points
- • Not ideal for: Users who require electronic or digital distance readouts

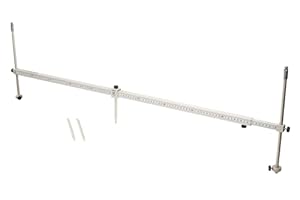

Adjustable-length trammel gauge designed to verify chassis measurement points. Manual locating and comparison suits workshop tasks where physical reference checks are required.
Repeatable reference locating - with adjustable pointers and centring collars
Two pairs of adjustable pointers, sized 170mm and 300mm, slide and lock along the bars while two centring collars align with studs or holes for consistent placement. Mechanical clamps and collars maintain the same reference when transferring measurements.
Repeatable locating reduces guesswork when comparing multiple points on a chassis, making it easier to confirm alignment across steering, subframe and under-bonnet positions.
Extended coverage across chassis spans - thanks to a 1000mm to 1860mm extendable length
Telescopic bars extend from 1000mm up to 1860mm, giving a maximum reach of 1.86m when fully extended. Locking mechanisms hold the chosen span steady for measurement transfer.
Long reach means fewer repositionings when checking full-width measurements, useful for cross-member, frame and large-panel reference checks.
Workshop access made easier - with a low-profile layout suited for under-vehicle work
Compact bar alignment and adjustable pointers keep the overall profile slim so measurements can be taken in confined engine bays and beneath vehicles. The construction supports use in locations with limited clearance.
Suitable for measurements where space is restricted, enabling checks beneath cars and around tight subframe areas without complex disassembly.
✨ The 4 Key Reasons for PowerTec Bodywork Trammel Gauge
- Quick setup - Reduce time spent aligning multiple chassis reference points.
- Suitable for comparative checks - Compare steering, subframe and under-bonnet positions with simple repeatable measurements.
- Manual reliability - No electronics required, dependable in any workshop environment.
- Extendable upgrade option - Compatible with longer Power-TEC unit for extra reach.
📋 Technical Details at a Glance
- Category: Automotive Parts and Accessories
- Brand: PowerTec
- Model: 92720 Bodywork Trammel Gauge
- Product ID: B0DXFFKCRC
- Length (maximum): 1.86m
❓ Frequently Asked Questions
Q: What measurement range does the gauge cover?
A: The extendable range runs from 1000mm up to 1860mm, with a maximum length of 1.86m when fully extended.
Q: What locating accessories are included?
A: Two pairs of adjustable pointers (170mm and 300mm) are supplied together with two centring collars for alignment to studs or holes.
Q: What is the gauge best used for?
A: Checking and comparing chassis measuring points, including steering, subframe and under-bonnet reference positions; designed for workshop and under-vehicle use.
🏆 Our Verdict
Well suited to garage technicians and serious DIYers who need a manual tool for chassis and alignment checks. The combination of adjustable pointers, centring collars and a long extendable reach makes repeatable, wide-span measurements straightforward. A practical, durable gauge likely to repay its cost through reliable use in routine measurement tasks.
