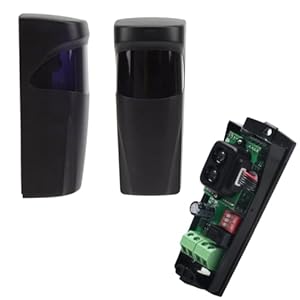

Safety sensor for gates and garage doors that uses Time of Flight laser detection for presence sensing. The Charged TOF100 Photocell brings straightforward wiring and compatibility for installers and homeowners seeking dependable obstruction detection. Does the Charged TOF100 Photocell match your site wiring and control system requirements?
⚡ At a Glance
- • Detection Accuracy: Time of Flight laser method aims to deliver consistent presence detection at entry points
- • Best for: Installers and homeowners needing a compact safety sensor for gates and garage doors
- • Not ideal for: Setups requiring dual-sided sensing or mirrored detection across both sides
Single-sided Time of Flight photocell designed for gate and garage safety. Wiring and relay options support straightforward integration with many control systems.
Faster on-site installation, with simple installation and configuration
Requires a 3-4 core cable and supports 12-24V AC and DC, keeping wiring tasks standard for most gate systems. Clear relay wiring options reduce ambiguity during setup.
Shorter installation time for electricians and gate engineers, cutting setup complexity. Useful for retrofit jobs where quick commissioning matters.
Flexible control integration, with NO & NC relay support
NO and NC relay outputs are provided to match normally open or normally closed control inputs across a range of systems. Compatibility is stated as 'compatible with all systems'.
Eases connection to existing controllers without additional relay modules. Helps avoid extra modifications when replacing older sensors.
Single-sided presence detection, with Time of Flight laser photocell
Single-sided operation monitors from one side using Time of Flight laser photocell technology as described in the product name and descriptions. The single-sided approach concentrates sensing on one direction.
Ideal for narrow entrances and situations where only one-direction monitoring is required. Keeps sensor mounting simple and unobtrusive.
✨ The 4 Key Reasons for Charged TOF100 Photocell
- Single-sided operation, Faster fitting in narrow or asymmetric entrances, saving on-site time
- NO & NC relay, Compatible with all control logics for safe integration across systems
- 12-24V AC & DC, Works with common power supplies found in gate systems
- 3-4 core cable requirement, Straightforward wiring using standard multi-core cable for connections
📋 Technical Details at a Glance
- Category: Safety sensor
- Model: Charged TOF100
- Operation: Time of Flight laser photocell
- Operation mode: Single-sided operation
- Wiring requirement: 3-4 core cable required
❓ Frequently Asked Questions
Q: Does the photocell work with both AC and DC supplies?
A: Yes, the unit is compatible with 12-24V AC and DC according to the product descriptions.
Q: Can the photocell connect to normally open and normally closed circuits?
A: Yes, NO and NC relay outputs are provided to cover all relay scenarios.
Q: What wiring is required for installation?
A: A 3-4 core cable is required and the product notes simple installation and configuration, suitable for typical installer wiring practices.
🏆 Our Verdict
The Charged TOF100 Photocell suits installers and homeowners who need a compact, single-sided safety sensor for gates and garage doors. Time of Flight laser detection combined with NO/NC relay outputs and 12-24V compatibility makes for wide integration potential. Long-term value comes from straightforward wiring and broad compatibility, reducing the need for extra components during installation.
