Board-to-board cable for data transmission, the sourcing map 16-Pin Flat Ribbon Cable promises tidy routing and reliable signal links between moving parts and the motherboard. Neat installations and secure connector alignment reduce frustration for repairers and hobbyists. Do the connectors and length suit your current repair or assembly?
⚡ At a Glance
- • Signal Transmission: Minimised crosstalk and interference for reliable data transfer
- • Best for: Repair technicians, hobbyists and OEMs connecting print heads, scanners, copiers, audio, LCD appliances and DVD players
- • Not ideal for: Applications that require round cable profiles or incompatible header pitches

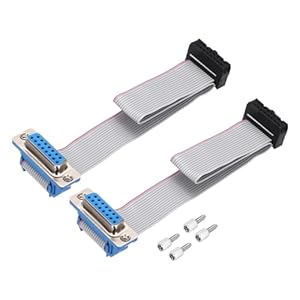

DB15 female to FC-16P terminations, 16 pins at 2.54mm pitch, with a 20cm length and 19mm width. Flat profile allows routing in tight spaces while conductor layout reduces crosstalk.
Neat routing in tight spaces, with flat, compact profile
Flat ribbon measures 19mm wide and 20cm long, allowing routing through narrow channels rather than bulkier round cables. The flat profile sits closer to PCB and chassis surfaces for tidier layouts.
Easier cable management inside printers, DVD players and tight chassis during repair or assembly tasks.
Reliable data transfer, with 2.54mm pitch and 16 conductors
Uniform 2.54mm spacing across 16 conductors reduces adjacent-conductor interference and matches common header pitches. The conductor layout is designed to minimise crosstalk and maintain signal integrity.
Cleaner signals for print heads, scanners and board-to-board links, helping to reduce transmission errors.
Simple connector alignment, with DB15 female to FC-16P terminations
One end uses a DB15 female connector while the other end is crimped to FC-format 2.54mm spacing wires, and the pack includes four screws for fixing. Connectors accept standard mating parts for repeatable connections.
Secure, repeatable connections speed up installation and reduce the chance of loose or reversed wiring during maintenance.
✨ The 4 Key Reasons for sourcing map 16-Pin Flat Ribbon Cable
- Flat ribbon profile – Easier routing through tight chassis spaces and cable channels
- DB15 female to FC-16P connectors – Direct connection for legacy serial and board-to-board interfaces
- 2.54mm pitch, 16 conductors – Standard spacing compatible with common headers and crimps
- Includes four mounting screws – Securely fastens DB15 connectors to prevent loosening during motion
📋 Technical Details at a Glance
- Category: Flat ribbon cable
- Connector types: DB15 female to FC-16P
- Pitch: 2.54mm
- Pin number: 16
- Cable length: 20cm / 7.9 inch
❓ Frequently Asked Questions
Q: What connectors are on the cable?
A: DB15 female on one end and FC-16P crimped wires on the other, with a 2.54mm pitch and 16 pins.
Q: What are the cable dimensions?
A: Cable length is 20cm and cable width is 19mm (0.75 inch).
Q: Where is this cable typically used?
A: For data transmission between moving parts and motherboards and for connecting print heads in printers, as well as scanners, copiers, audio, LCD appliances and various DVD players.
🏆 Our Verdict
Suitable for technicians, hobbyists and OEMs who need compact, standard-pitch ribbon connections for board-to-board and moving-part links. Standard 2.54mm pitch, DB15 female and FC-16P terminations with a 19mm flat profile make it dependable for tight installations. Good long-term value for repair and assembly work, reducing rework and keeping signal paths tidy.
