The panel-mount power inlet, JSADZKJ IEC C14 Panel-Mount Plug, is built for fast, tool-free wiring and reliable current transmission. That reassurance aids technicians and DIYers who need repairs completed quickly and safely. Is it the right choice for workshop and office equipment maintenance?
⚡ At a Glance
- • Wiring Simplicity: Three-colour handle-press quick-connect wiring for rapid, tool-free connections
- • Best for: Technicians and DIYers repairing or replacing panel power in computers and appliances
- • Not ideal for: Applications requiring conductors outside 0.2-1.5mm² or permanent soldered joints

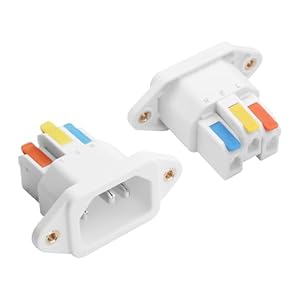

Solderless IEC320 C14 inlet rated at 10A, 250V with press-to-connect terminals. Nickel-plated brass pins and flame-retardant ABS housing ensure stable current and heat resistance.
Faster repairs - with solderless quick-connect wiring
A three-colour handle-press assembly opens when pressed, accepts the prepared conductor and locks it down without screws or tools; wiring range supports 0.2-1.5mm² and a 10mm strip length. The terminal layout is labelled L, E, N for clear orientation.
Wiring completes in moments rather than requiring screw terminals, making on-site fixes and replacements much quicker and less fiddly.
Stable current transfer - with nickel-plated brass pins
C14 pins are nickel-plated brass, a combination that offers good conductivity while resisting corrosion and wear, rated to handle 10A at 250V. Reliable contact surfaces lower the risk of hotspots under normal load.
Consistent power delivery suits high-draw devices such as desktop PCs, printers and small appliances during everyday use.
Durable, heat-resistant mounting - with flame-retardant ABS housing
Rigid ABS construction resists deformation under heat and mechanical stress, while the inlet mounts screw-wise to a chassis exterior and also clips into panel holes for a neat fit. Terminals are clearly labelled to reduce wiring mistakes.
Mechanical stability and material choice give long-term resilience in racks, enclosures and domestic appliance panels.
✨ The 4 Key Reasons for JSADZKJ IEC C14 Panel-Mount Plug
- Solderless quick-connect - Cuts installation time for repairs and replacements to minutes
- Nickel-plated brass pins - Maintain low resistance and resist corrosion under regular use
- Flame-retardant ABS housing - Withstand heat and prevent deformation in hot enclosures
- Panel-mount clip fitting - Sits neatly in standard chassis holes for tidy installations
📋 Technical Details at a Glance
- Type: IEC320 C14 panel-mount inlet
- Voltage Rating: 250V
- Current Rating: 10A
- Contact Material: Nickel-plated brass pins
- Housing Material: Flame-retardant ABS
❓ Frequently Asked Questions
Q: Can wiring be completed without a screwdriver or other tools?
A: Yes, the three-colour handle-press quick-connect assembly opens with a press, accepts prepared conductors and locks them down without tools.
Q: What wire sizes will fit these terminals?
A: Conductors between 0.2 and 1.5mm² are supported, with a recommended stripping length of 10mm.
Q: Which equipment is this inlet suitable for?
A: Ideal for repairing or replacing panel power on desktop computers, servers, printers, routers, rack-mounted office equipment and some household appliances such as kettles and rice cookers.
🏆 Our Verdict
Well suited to technicians, small IT teams and keen DIYers who need fast, dependable panel power fixes. Solderless, labelled terminals combined with nickel-plated pins and heat-resistant housing deliver practical speed and reliability. Provides strong long-term value for frequent maintenance and quick repairs due to durable materials and easy wiring.
